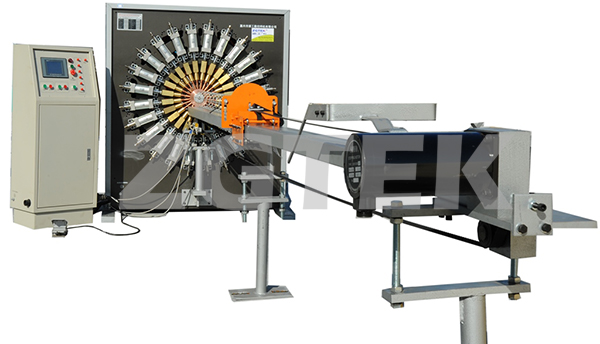

Filter Cage Welding Machine - Economic Version

Specification

• Model: DLN-16-E
• Cage wire quantity: 8/10/12/14/16
• Ring space: can be set at any value
• Cage outer diameter: 100-200mm
• Rail length: standard 7.5 meters
• Input voltage: 380V(2-phase) or customized
• Power frequency: 50/60Hz
• Designed max capacity of transformers: 80KVA
• Instant welding power: 18KVA
• Transformers: 1 set
• Air pressure: 0.6-0.8MPa
• Required air flow: 250L/min
• Cooling method: natural cooling
• Weight: about 1200KGS

Features

• Very high welding speed, e.g. for a 12-wire cage, one ring takes only 0.36s
• Automatic cage pulling, ring space can be set in the program through the user-friendly interface.
• Material selection, different welding parameters for mild steel, galvanized steel and stainless steel
• Auto compensation gives enough space to insert the ring when the ring distance is short
• Ring space precision is 0.1mm; cage pulling speed is 0.4m/s
• Rails and material shelf equipped and connected to the machine. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages
• Equipped with a buffer air tank, short air route inside the machine ensures quick response of the cylinders
• 25mm thick front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured
• Stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s
• Equipped with powerful micro-computing unit
• Sync/Time-sharing mode can put two transformers work at the same time or one after another, secure good welding quality even when the power supply is not very sufficient

---
